GeoSync
Turning Location into Trust.
- Dual-band GNSS (L1 & L5)
- Supports GPS, GLONASS, NavIC, BDS, Galileo, QZSS
- USB Plug & Play Interface
- Rugged, IPX6 Protected Body
- Low Power Consumption (Max 45 mA)
- Cold & Hot Start Optimization

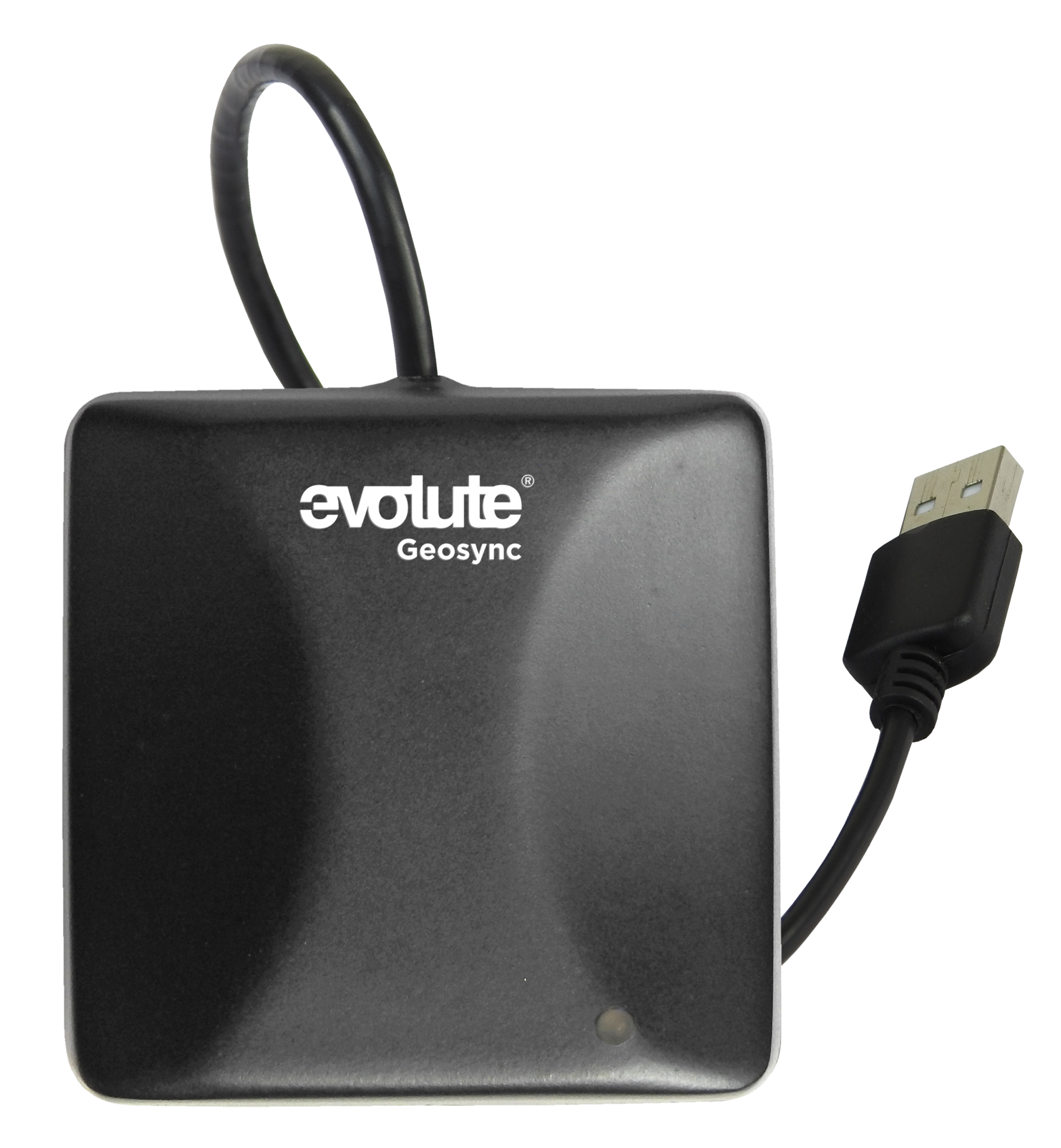

GeoSync ® – High-Accuracy, Plug-and-Play GPS Receiver for Field & Workstation Use
Pocket Sized
Pocket Sized
Enabbling Aadhaar
Enabbling Aadhaar
Bluetooth Connection
Bluetooth Connection
Features of eScan®
Available in both certified variants:
Dual-band
GNSS (L1 & L5)
Supports GPS, GLONASS, NavIC, BDS, Galileo, QZSS
USB Plug &
Play Interface
High Precision with Sub-meter Accuracy
LED Status
Indicator
Rugged, IPX6
Protected Body
Low Power
Consumption (Max 45 mA)
Cold & Hot
Start Optimization
Applications Of GeoSync®
Location Identification for Workstations
Tech Specs
Biometrics
- - Aadhaar L1 Finger print scanner
- - STQC certified optical sensor supports ISO 19794-2/4 or ANSI/INCITS 378 template formats, 500 dpi

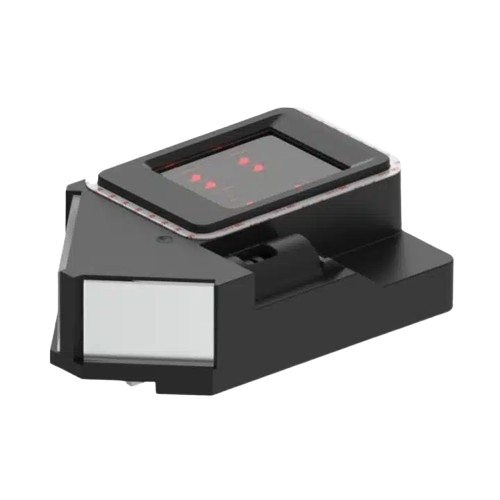

- - FBI PIV IQS certificate sensor
communication
- - Bluetooth ver 2.1 and (optional BLE 5.0)
- - (Optional) USB interface
Rechargeable Battery
- - 3.7V at 400mAH
Charger
- - 5V, 1.5A
Physical properties
- - Dimensions - 65 mm (L) x 40 mm (W) x 25 mm (H)
- - Weight - 90 g
Certifications
- - BIS, ROHS, STQC
environment
- - Humidity - 95% RH non condensing
- - Enclosure - Ergonomic ABS + PC plastic body
- - Operating Temperature O°C to 50°C
OS supported
- - Android & iOS (Optional)
SDK Available
- - Java, .Net
- - Protocol - Evolute Proprietary
- - Aadhaar Registered Device Service Supported
Technical Specifications
| Category | Details |
|---|---|
| Biometric | Aadhaar L1 fingerprint scanner STQC-certified optical sensor (ISO 19794-2/4 or ANSI/INCITS 378 template formats), 500 dpi FBI PIV IQS certified sensor |
| Communications | Bluetooth v2.1 (optional BLE 5.0) Optional USB interface |
| Rechargeable Battery | 3.7V at 400mAh |
| Charger | USB charging |
| Physical Properties | Dimensions: 65 mm (L) × 40 mm (W) × 25 mm (H) Weight: 90 g |
| Certifications | BIS RoHS STQC |
| Environment | Humidity: 95% RH non-condensing Enclosure: Ergonomic ABS + PC plastic body Operating Temperature: 0°C to 50°C |
| OS Supported | Android & iOS (Optional) |
| SDK Available | Java, .Net Protocol: Evolute Proprietary Aadhaar Registered Device Service Supported |
Category | Specifications |
COMMUNICATION | USB 2.0 Type-A (Optional Micro / Type-C) |
FREQUENCY | NavIC L5 (1176.45 MHz), GPS L1 (1575.42 MHz) |
SUPPORTED BANDS | Concurrent reception of L1 & L5 |
SATELLITE RECEPTION | Up to 72 satellites |
COMMUNICATION PROTOCOL | NMEA 0183 with encrypted data |
BAUD RATE | 115200 bps |
IP RATING | IP6X |
VISUAL INDICATOR | LED GPS-status indicator |
OPERATING TEMPERATURE | –35°C to 80°C |
POWER SUPPLY | 5 Volt |
CURRENT CONSUMPTION | Max 45 mA |
COLD START | 30–40 seconds |
HOT START | 4 seconds |
CABLE LENGTH | 3m / 6m |
SDK & APPLICATION | Windows Service Application, Java SDK |
CERTIFICATIONS | WPC, IP, Drop Test |
Communication
- USB 2.0 Type-A (Optional Micro / Type-C)
Frequency
- NavIC L5 (1176.45 MHz), GPS L1 (1575.42 MHz)
Supported Bands
- Concurrent reception of L1 & L5
Satellite Reception
- Up to 72 satellites
Communication Protocol
- NMEA 0183 with encrypted data
Baud Rate
- 115200 bps
IP Rating
- IP6X
Visual Indicator
- LED GPS-status indicator
Operating Temperature
- –35°C to 80°C
Power Supply
- 5 Volt
Current Consumption
- Max 45 mA
Cold Start
- 30–40 seconds
Hot Start
- 4 seconds
SDK & Application
- Windows Service Application, Java SDK
Certifications
- WPC, IP, Drop Test
Certifications
FAQ
The GeoSync is a plug-and-play GPS device that connects via USB and provides real-time, accurate location data.
It uses a standard USB interface for plug-and-play functionality.
• GPS
• GLONASS
• NAVIC
Yes, it is compact, lightweight, and rugged, making it suitable for fieldwork in various environments.
• Capturing the physical location during Aadhaar enrolment
• Ensuring location accuracy for government and NGO-sponsored schemes
Yes, it is designed to be user-friendly and accessible to users of all skill levels.
Cold Start: 30–40 seconds
Hot Start: < 4 seconds
