eScan
Mosip & Aadhaar Ready Fingerprint Module
- eScan- Mosip & Aadhaar Fingerprint Module
- L0 (FBI PIV IQS) Compliant Module
- MOSIP-Compatible for global identity deployments
- FAP20 Thermal Sensor with high accuracy & scratch-free window
- Compact, lightweight & rugged for field deployment
- Supports ISO fingerprint templates

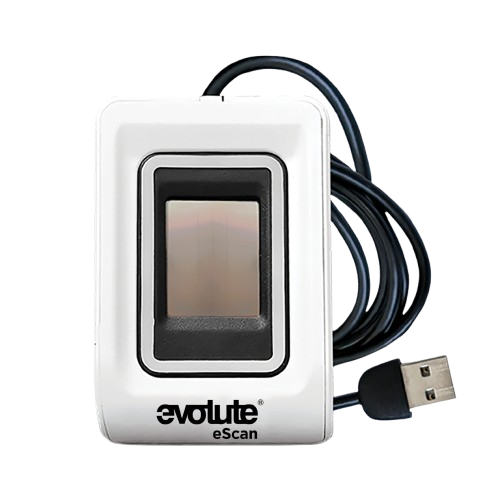

eScan
High-Precision Secure & Aadhaar-Ready Fingerprint Module for Identity, eKYC & Authentication
The eScan L1 variant is Aadhaar STQC-certified, built on an advanced FAP20 thermal fingerprint sensor with spoof detection using the Active Thermal principle — ensuring secure and compliant Aadhaar authentication.
Applications Of eScan®
BFSI

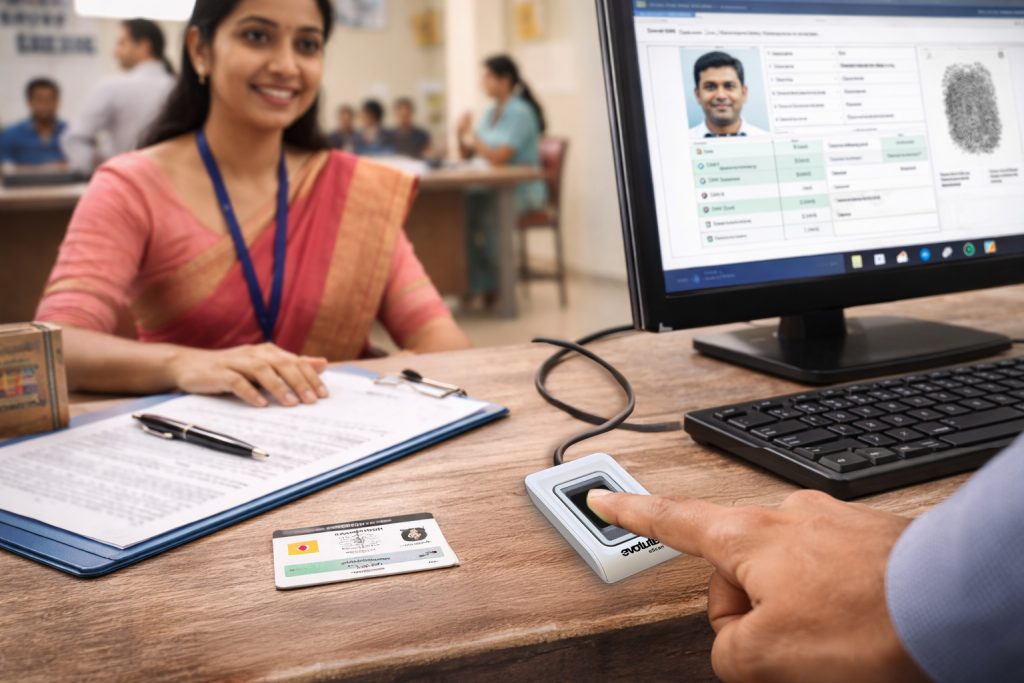

e-Governance

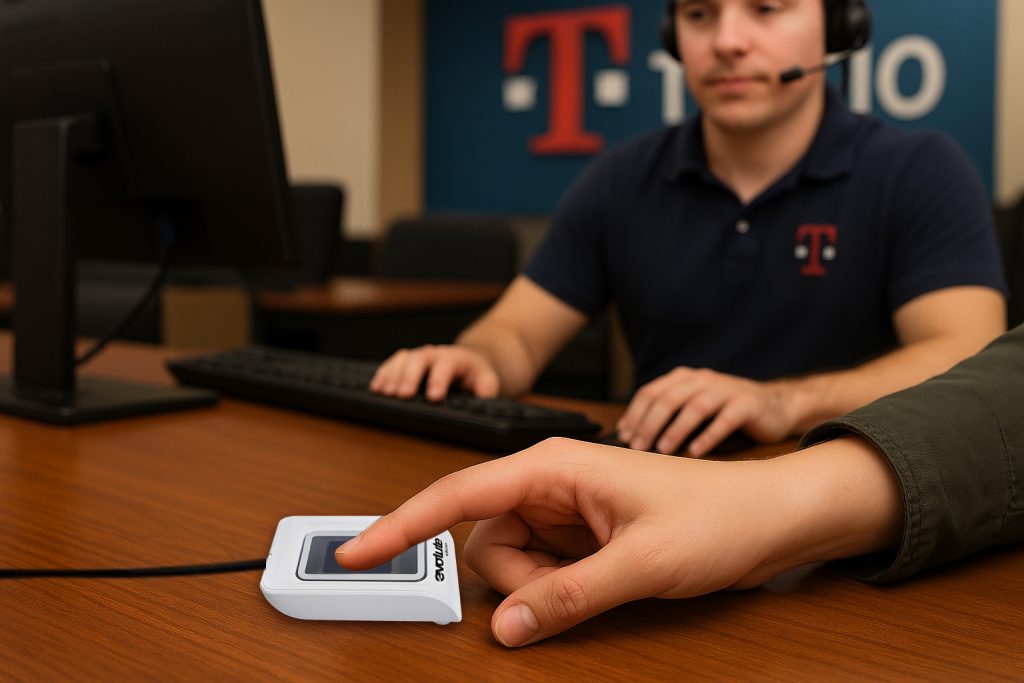

Telecom
Telecom

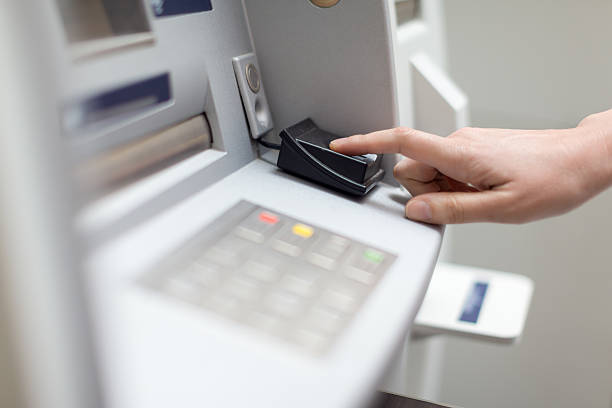

Micro ATM
e-Governance

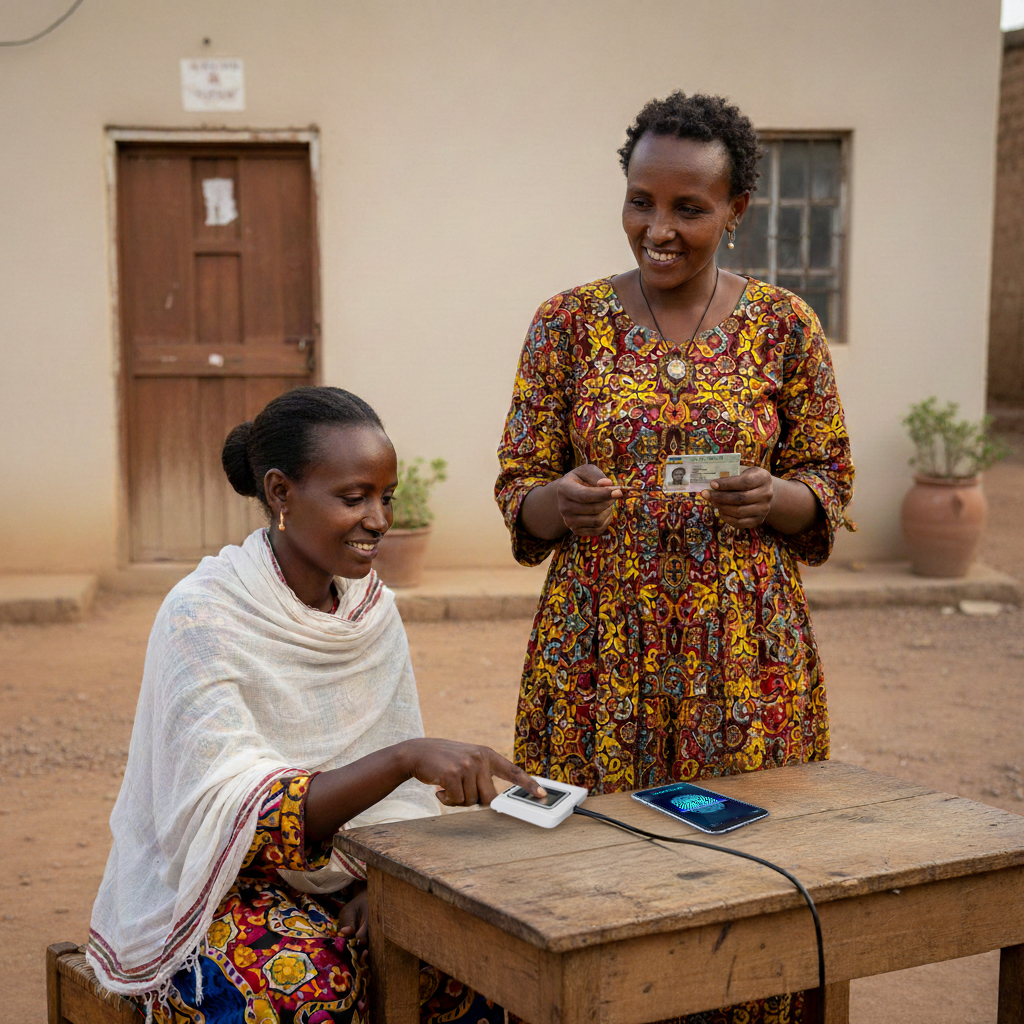

eScan L1 AEPS
BFSI
Technical Specifications
Operating System
- Android, Windows
Sensors
- FAP20 Scratch-Free Thermal Sensor; FBI PIV IQS Certified
Image Resolution
- 500 DPI
Image Capture Area
- 312 mm²
Output Image Size
- 400 × 300 pixels
Grey Level
- 256 Levels
Interface Cable
- High-speed USB 2.0
Power Supply
- 5V, 500mA (USB Powered)
Standby Current
- 200 µA; Operating < 60 mA
Dimension
- 61(L) × 41(W) × 14(H) mm
Weight
- 45g
Operating Temperature
- 0°C to 50°C
Indication
- Red LED for Scanning
Template Supported
- ISO 19794-2 (Minutiae), ISO 19794-4 (Image)
Operating System
- Android 7.0+ & Windows 10 and above
Sensors
- FAP20 Scratch-Free Thermal Fingerprint Sensor; Encrypted PID Block support; ISO 19794-2/4; 500 PPI; FBI PIV IQS Certified
Image Resolution
- 500 PPI
Image Capture Area
- 312 mm² (20.32 × 15.33 mm)
Output Image Size
- 400 × 300 pixels
Grey Level
- 8-bit, 256 Grey Scale
Interface Cable
- High-speed USB 2.0
Power Supply
- 5V, 500mA
Standby Current
- 200 µA; Operating < 60 mA
Dimension
- 60.5(L) × 41(W) × 14(H) mm
Weight
- 45g
Operating Temperature
- 0°C to 50°C
Storage Temperature
- 0°C to 60°C
Humidity
- 95% RH non-condensing
Light Indication
- Red LED (Scanning); Green LED (Scan Complete)
Certifications
FAQ
eScan L0 is a compact, high‑accuracy fingerprint module designed for secure authentication, identification, and verification across digital platforms. Built on a FAP 20 scratch‑free thermal fingerprint sensor, it is widely used in e‑Governance, BFSI, telecom, and enterprise identity applications where reliable biometric authentication is required.
eScan L0 delivers 500 DPI fingerprint image resolution and meets FBI PIV IQS image quality standards, ensuring high accuracy and consistency. Its patented Active Thermal sensing technology enhances resistance to noise and environmental variations, making it suitable for mission‑critical identity verification systems.
eScan L0 supports Android and Windows operating systems and connects via a high‑speed USB 2.0 interface. Its lightweight, USB‑powered design makes it easy to integrate into kiosks, laptops, POS devices, desktops, and custom biometric terminals used globally.
eScan L0 supports ISO 19794‑2 (minutiae) and ISO 19794‑4 (image) fingerprint templates and is certified for BIS, EMI/EMC, safety, and environmental compliance. These certifications ensure interoperability and regulatory readiness for large‑scale commercial and government deployments.
eScan L0 is ultra‑compact (<40 g), power‑efficient (<60 mA operating current), and rugged, making it ideal for high‑volume rollouts and embedded integrations. Its combination of accuracy, durability, low power consumption, and global standards compliance helps organizations deploy cost‑effective and scalable biometric authentication solutions worldwide.
eScan L1 is a UIDAI‑certified Aadhaar L1 fingerprint module designed for secure biometric authentication and identity verification. Built on a FAP20 thermal fingerprint sensor, it is widely used in e‑Governance, BFSI, Telecom, AePS, Micro ATM, digital onboarding, and National ID projects where high security and accuracy are mandatory.
Yes. eScan L1 is Aadhaar L1 certified and supports encrypted PID block generation compliant with ISO 19794‑2/4 standards. It features a 500 PPI sensor with FBI PIV IQS certification, ensuring full compliance with UIDAI requirements for Aadhaar authentication and eKYC applications.
eScan L1 is built on a patented Active Thermal fingerprint sensing technology combined with adaptive AI‑based spoof fingerprint detection (FFD). This makes it highly resistant to fake fingerprints, silicon molds, and presentation attacks—making it a trusted choice for high‑risk identity and financial authentication environments.
eScan L1 connects via high‑speed USB 2.0 and supports Android 7.0 & above and Windows 10 & above. Its compact form factor and low power consumption make it ideal for integration into Micro ATMs, kiosks, POS devices, laptops, and custom biometric terminals used in enterprise and government deployments.
eScan L1 is lightweight (45 g), compact, and rugged, designed to operate reliably across varied Indian field conditions. With UIDAI certification, FAP20 capture area, thermal sensing, and low operating current, it enables scalable, secure, and cost‑effective biometric deployments across millions of users and devices.
